Fuse Profile

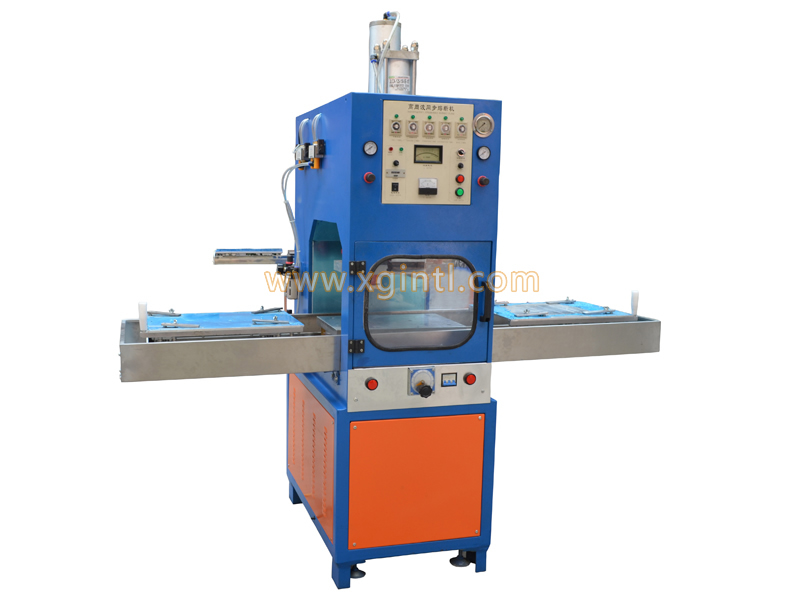

　　Fusing machine is a high frequency device, its overall oscillation frequency is 13.56MHz, 27.12 MHz, 40.78 MHz band in line with international industry standards, high-frequency generated by the tube self-excited oscillator frequency electromagnetic field provider, so that the processing of plastic in the upper and lower frequency electric field between the electrodes in its internal molecular motion generated from the friction force in the mold under pressure to obtain the object of welding, welding results.

　　Fusing machine components

　　1, fusing machine from the rack, power unit and motor components. Constituted by a microcomputer control box, touch screen centralized control; each parameter, the program time and frequency heating current size of the continuously adjustable. Wire completed by a servo motor, frequency heating, pneumatic clamping, motor driven rotary thereby twist off, the product automatically sent. Advanced control technology, performance, stable, accurate size and high precision production; has a reversing function. The main components used in Japan, Taiwan and Europe's leading companies components, the machine is rigorously tested before leaving the factory, you can use it.

　　2, GY30CF-A / B fusing systems, wire rope Automatic feed line length systems, pneumatic (hydraulic) pulled off the clamping mechanism rotating wire rope Wire straightening system automatically combined into a fully automatic equipment to achieve after fusing rope ends are tapered rope length can be 7 inches true color TFT-LCD touch screen, touch the "total length" display box, pop-up numeric keypad settings, set value and press the Enter key to exit. (Length by a servo motor control, the value is the number of pulses.) Any length setting, automatic blanking, fully automated, you can set class production, and automatic shutdown alarm.

　　3, the rack using the SCK-8080-8040-4040 multi-standard "framework aluminum aviation industry" and "glass panel" assembled, the frame profile section unique complexity, variety, full specifications, to meet the various needs of multi-assembly method , fast and accurate. After surface treatment, with a bright, beautiful, anti-corrosion, anti-static, increasing show strength. Eliminating welding, inlaid easy, easy, easy to exchange, with sufficient strength and toughness, good mechanical properties, force, light weight and other characteristics.

　　4, the device by changing up the clamps, the relevant molds and sending wire wheel can achieve a variety of specifications of the rope cutting blown. I.e. :1.5-2 .5-6mm steel cord production and use of the devices are interchangeable, and to facilitate exchange.

　　Fusing Machine Features

　　A. with automatic feeding, fuse, rotate, blanking, fuse number and other functions. For different fuse sizes remain synchronized feeding function.

　　B. size servo motor automatic monitoring function: set cutting size, the machine produced products size error must be within tolerance.

　　C. Environmental features: equipment designed to meet national noise standards, eliminate odor of gas functions.

　　D. firmness equipment: equipment design beautiful, strong, and durable.

　　E. equipment maintenance Simplicity: Taking into account technical staff, easy maintenance, equipment design fully into account the performance.

　　F. device stability: stable and reliable equipment design, equipment, electrical controls used on the brand and mechanical materials are used by international and domestic brand-name manufacturers of products, ensure that the equipment has a longer service life.

　　G. parties outside of the device need to purchase a reliable water cooling circulation system to ensure the stable operation of the system GY30 fuse.

　　Fuse technical requirements

　　1, the fuse wire rope machine equipment can be completed in diameter: WBRD-GY30CF-A is 1.5-2.5MM WBRD-GY30CF-B is 1.5-6MM

　　Servo motor feed line equipment to ensure accurate fuse length; fuse appear before conical, conical surface like edge round face diameter less than the maximum rope diameter, fusing surface without spread; using the touch-sensitive screen settings change fuse length quickly and easily.

　　2, wire rope and fuse size requirements:

　　A. Fuse fuse material is no inner cotton rope.

　　B. Requirements rope diameter of 1.5-2.5 and 1.5-6mm (up to replace the collet and related mold, sending wire wheel to achieve).

　　C. The maximum fusible wire diameter of 2.5 and 6mm, length limitation.

　　D. fuse sizes such as: 9.4 ", 12", 14 ", 16", 18 ", 24", 36 ", 48", 60 ", 72", etc. can be 7 inches true color TFT-LCD touch screen, touch "overall length" display box, pop-up numeric keypad to set the length set arbitrarily.

　　Fuse Applications

　　4th generation in line with European environmental standards, mainly used for all kinds of plastic products, molding, and the different shapes blister or blister automatically trimming. Suitable for PVC double blister sealing, blister and paper card sealing, environmental APET film equivalent, soft indentation punching molding line, environmentally sealed contract APET sided plastic trimming, special materials sealing. Blister packaging (including heat trimming down double blister, blister and cardboard heat trimming), automotive interior parts, trademark, stationery, raincoats, inflatable toys, plastic cover, cool liquid cushion, footwear, cushions , all kinds of bags, hand bags and other soft heat of processing, all kinds of convex shapes of patterns, letters, text repression.
