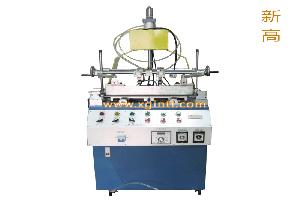

Automatic folding machine plastic molding processing equipment, plastic molding its processing principle of the box after folding and then molded by hot pressing, so that the box can be inserted up paper card manual packaging effect. A wide range of size adjustable design.
For different products such as plug-fold paper card packaging, packaging boxes straight molding.
The machine features:
※ infrared electric eye safety design;
※ durable, designed to adapt to long-term security;
※ time-saving, easy to operate;
※ fast and accurate production;
※ trilateral independent temperature, so that the Trilateral average temperature;
※ size can be molded be adjusted with the required dimensions;
※ can be a variety of customized products.
Scope: transparent plastic for the packaging industry, packaging, electronics, household appliances, toys, stationery, daily necessities, communications, automotive, cosmetics and other industries.
Mechanical parameters:
|
Model |
XG-4050
|
|
Power supply
|
220V 50/60HZ
|
|
Total electricity consumption
|
1.6KW
|
|
Flap size
|
330mmX420mm
|
|
Dimensions
|
950mmX890mmX1560mm
|
|
Air Compressor
|
1HP
|
|
Flap Views
|
10 / min
|
|
Weight
|
200kg
|
|
Flap height
|
120mm
|
|
Production rate
|
600-800ps/hr
|
1 heating plate width adjustment hand wheel (R) 12. Heating temperature controller
2. heating plate width adjustment hand wheel (left) 13. counters
3. before the heating plate 14. hems stop control valve 4. photoelectric safety device 15. heating is stopped press the button 5 Power Indicator 16. automatically stop press the button 6. power switch 17. cooling-time 7. heating indicator 8. heating switch 9. main power switch 10 automatic, manual switch button 11 Automatic light automatic folding machine operating procedures trilateral 1 before the operation to wear tight-fitting protective clothing, cuffs fastened jacket hem is not open, not in the starting of the machine next to wear off clothes or cloth around the body, to prevent machine twisting injury. Must wear a helmet, braids should be placed inside the cap, not wearing a skirt, slippers. 2 folding work to go through a certain professional learning, I have to know how to operate the machine structure, performance and proper installation of the mold method can separate operation. 3 plus a good lubricant before use and check for empty running two minutes. 4 starts to wait for the normal operating speed before starting work; while observing the dynamics surrounding personnel, to prevent injury. 5 shall not exceed specifications for use of the machine. 6 multiplayer action directed by a man, stand up, or retreat when the workpiece, close contact with both sides of the operator, the action unanimously. 7 does not allow the material has a large burr burr and prevent mold damage. 8 After work, cut off the power, good machine maintenance and cleaning work environment.
|
